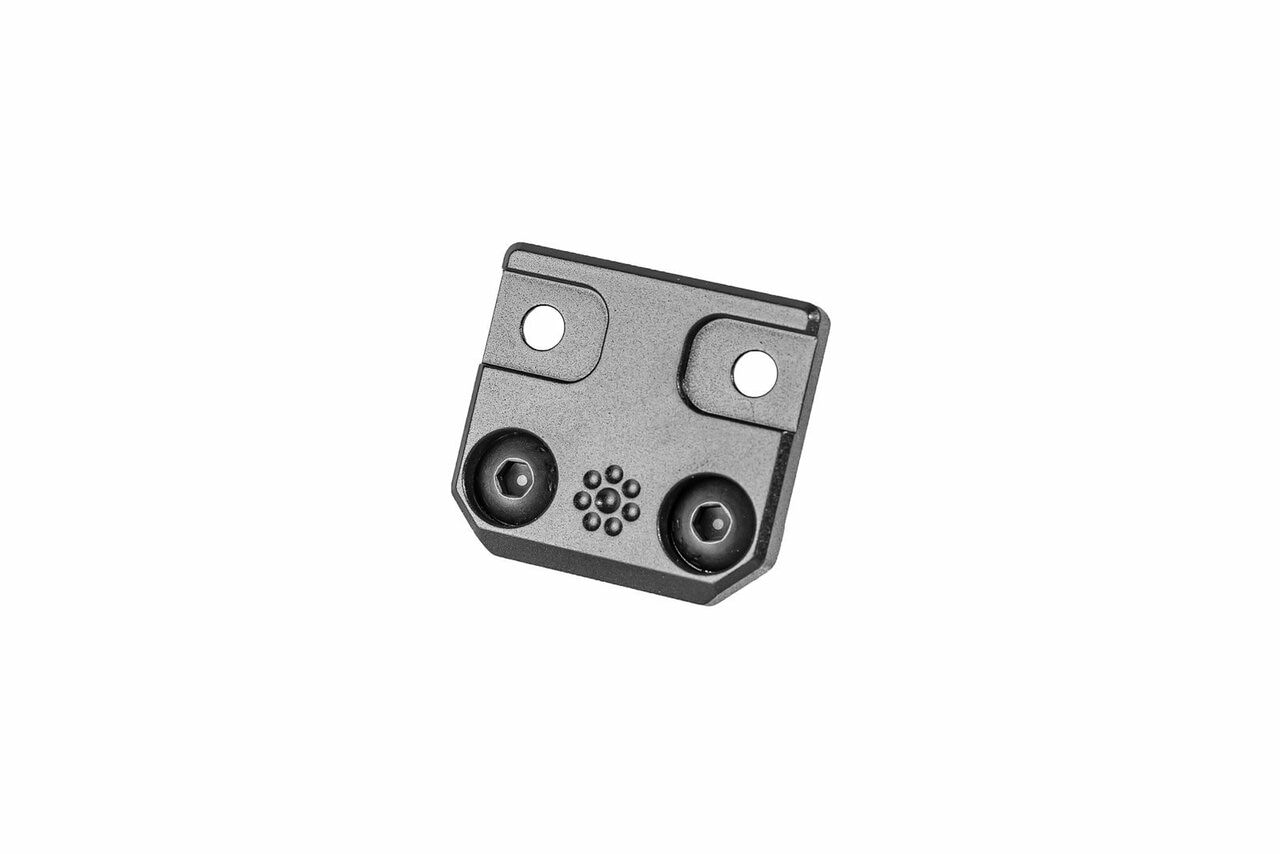

Please note: the current product pictures show the M-Lok version, but the KeyMod is identical besides using BCM KeyMod screws.
The Arisakaย Side Scoutย Mount (SSM) is designed specifically for lights that utilize the Scout-style mounting platform.ย It replaces the stock Picatinny rail adapter with a low-profile mount forย KeyMod handguards, and tucks the light underneathย either side of the ATPIAL laser/illuminator series, including the ATPIAL-C, AN/PEQ15, and LA-5/PEQ. It will also allow the light to clear the QD lever on the Steiner DBAL I2, A3, and D2.
The SSM is compatible with the Modlite 183560 and 18650 bodies/lights, Surefire M300A, M300B, M300C, M600B, M600C, M600P, M600U, M600V, M600DF, Streamlight Protac Rail Mount 1, 2 and HL-X, and Arisaka 300 and 600 Series.
Length: 1.265″
Thickness: 0.2″
Weight: 0.6 oz
The mount is CNC machined from 6061-T6ย aluminum andย MIL-A-8625 Type IIIย hard coat anodized. Includes necessary screws to attach light body to mount.ย Requires aย T15ย and IP20/T20 Torx driver for installation (not included). A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights. Recommended torque:ย 20 inch lbsย for KeyMod and light body screws with medium strength threadlocker.
Weight | .0625 lbs |
---|---|
Dimensions | 1 × 1 × 1 in |
